Metal Stud

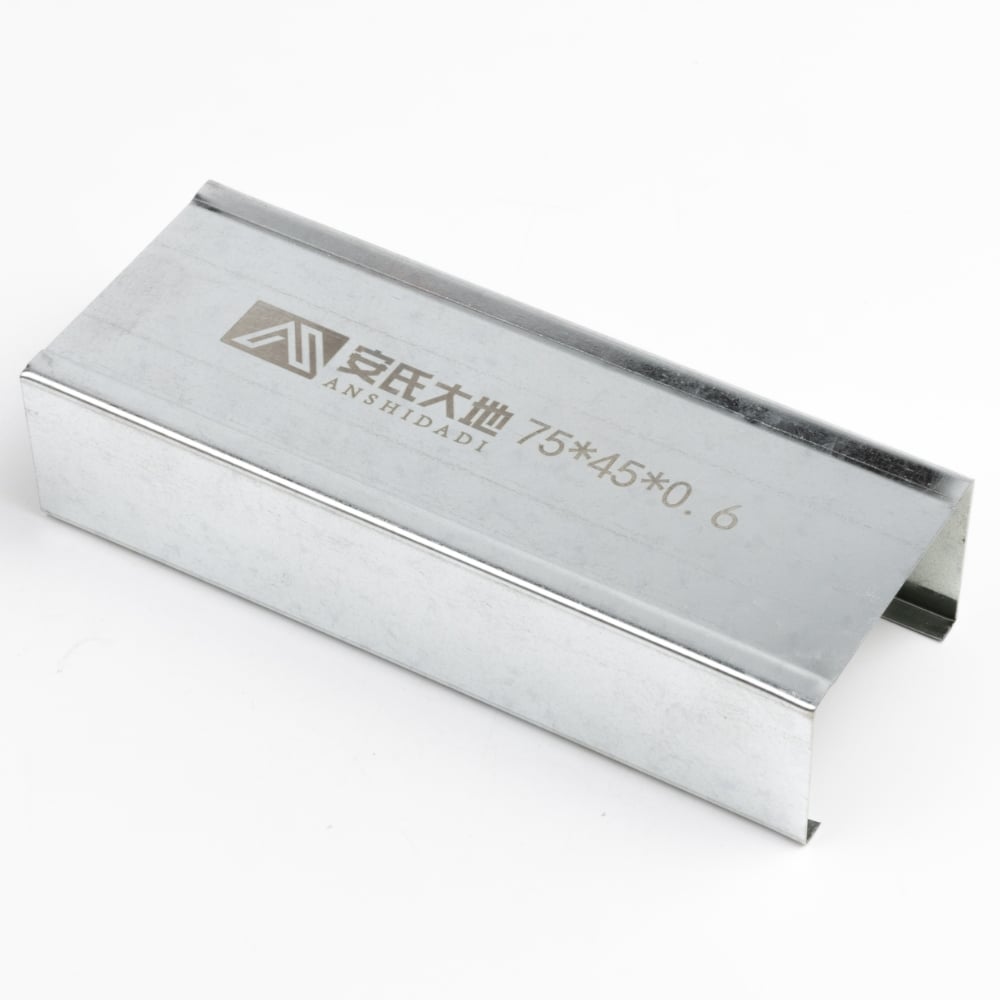

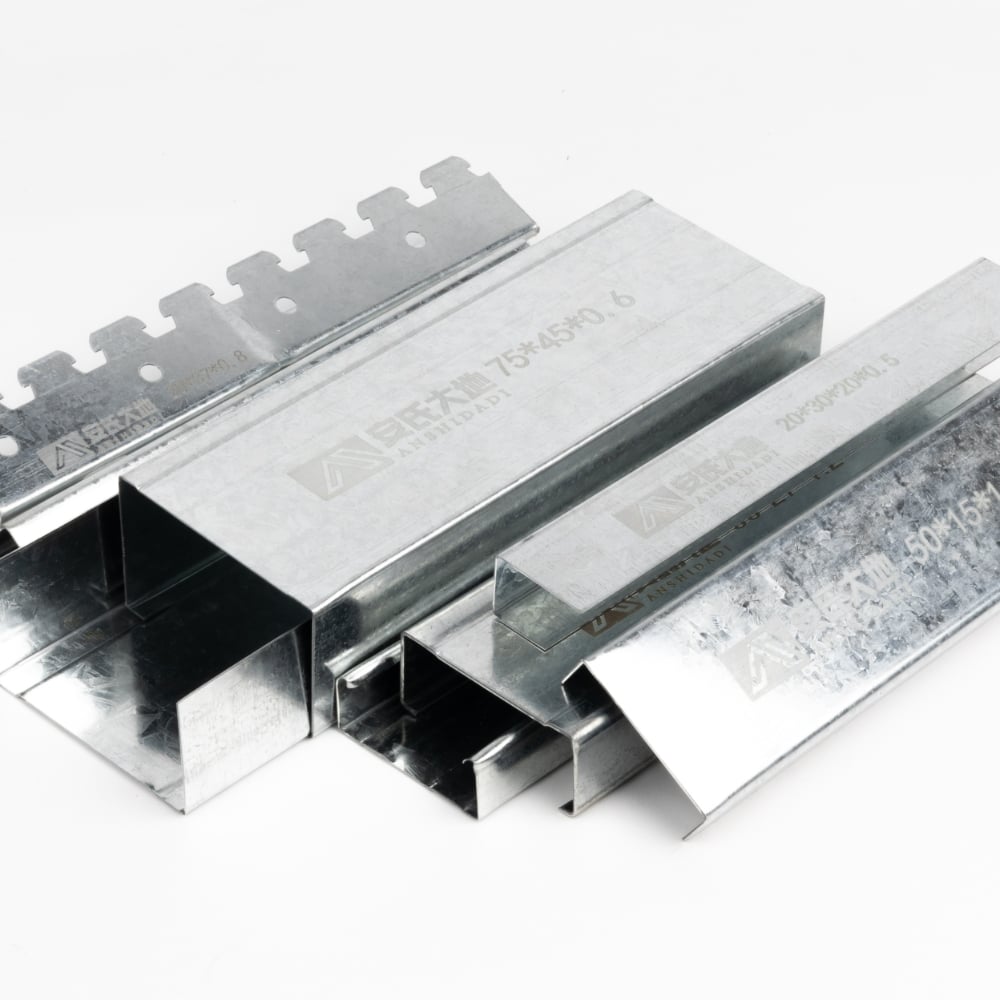

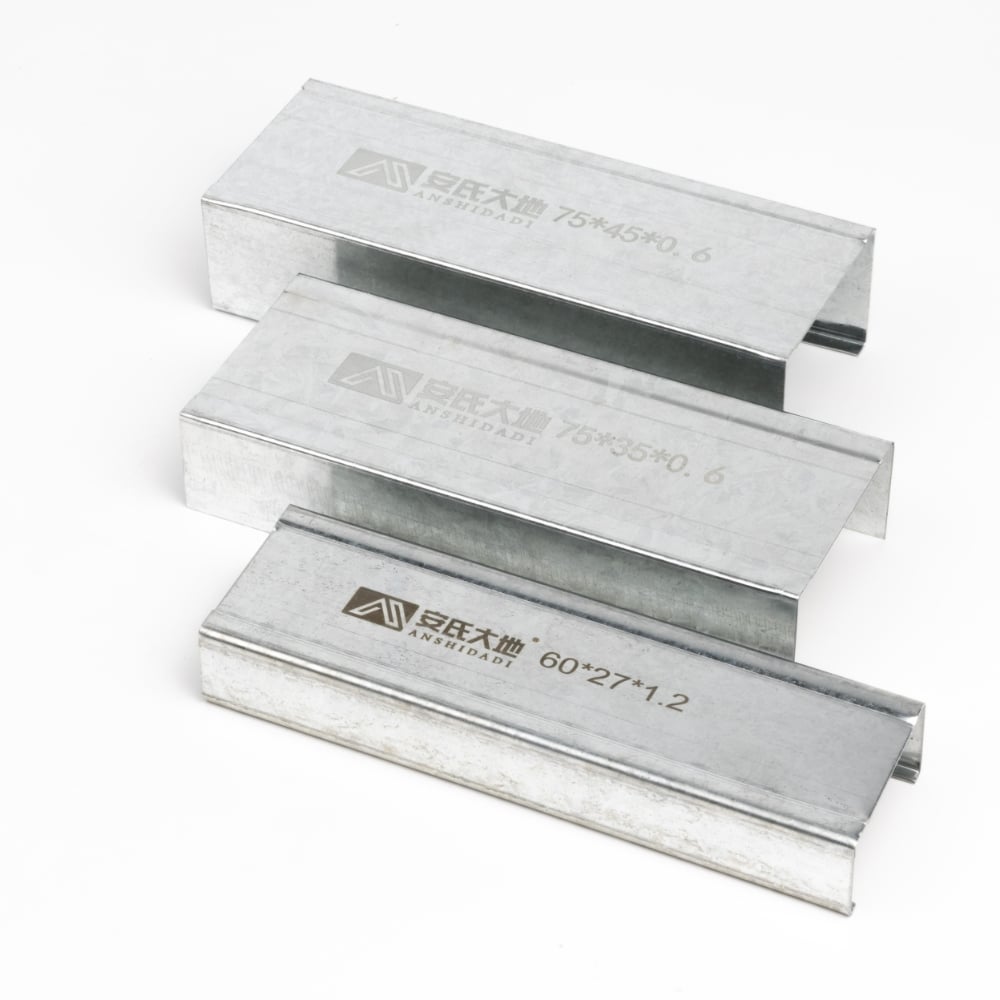

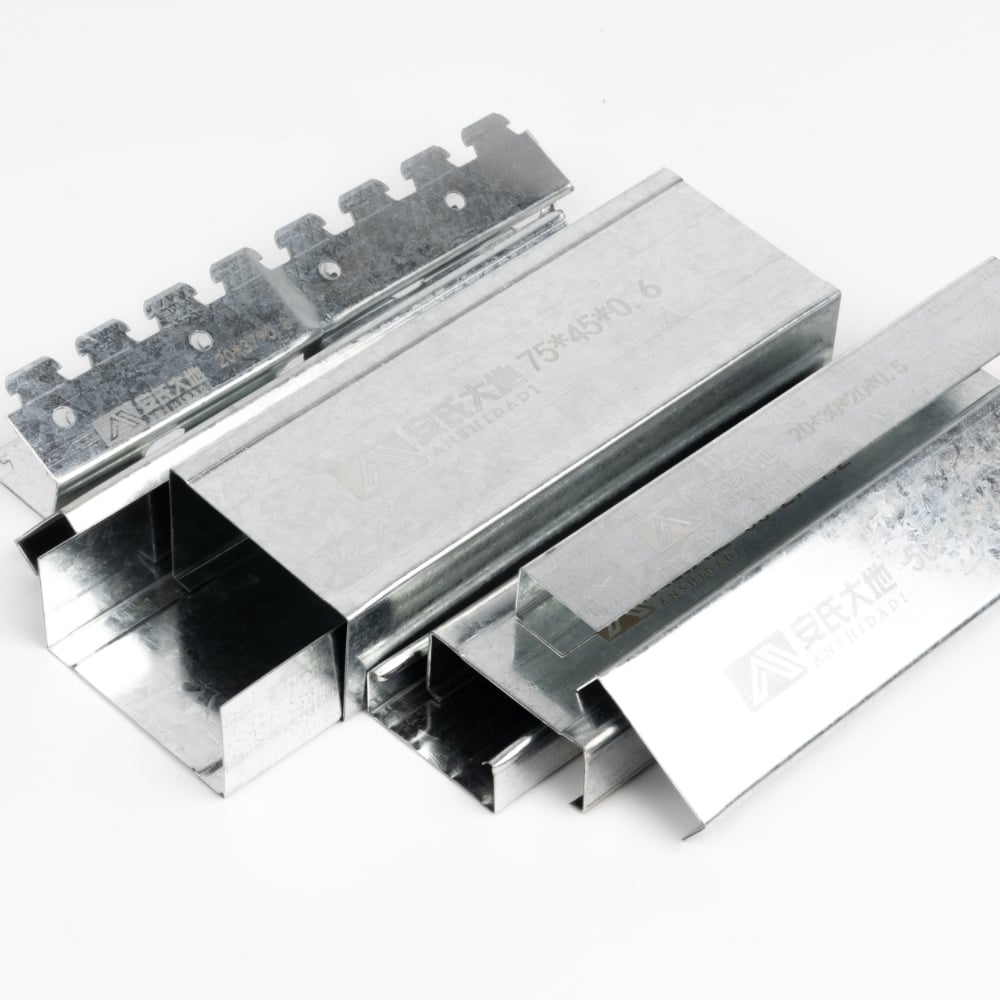

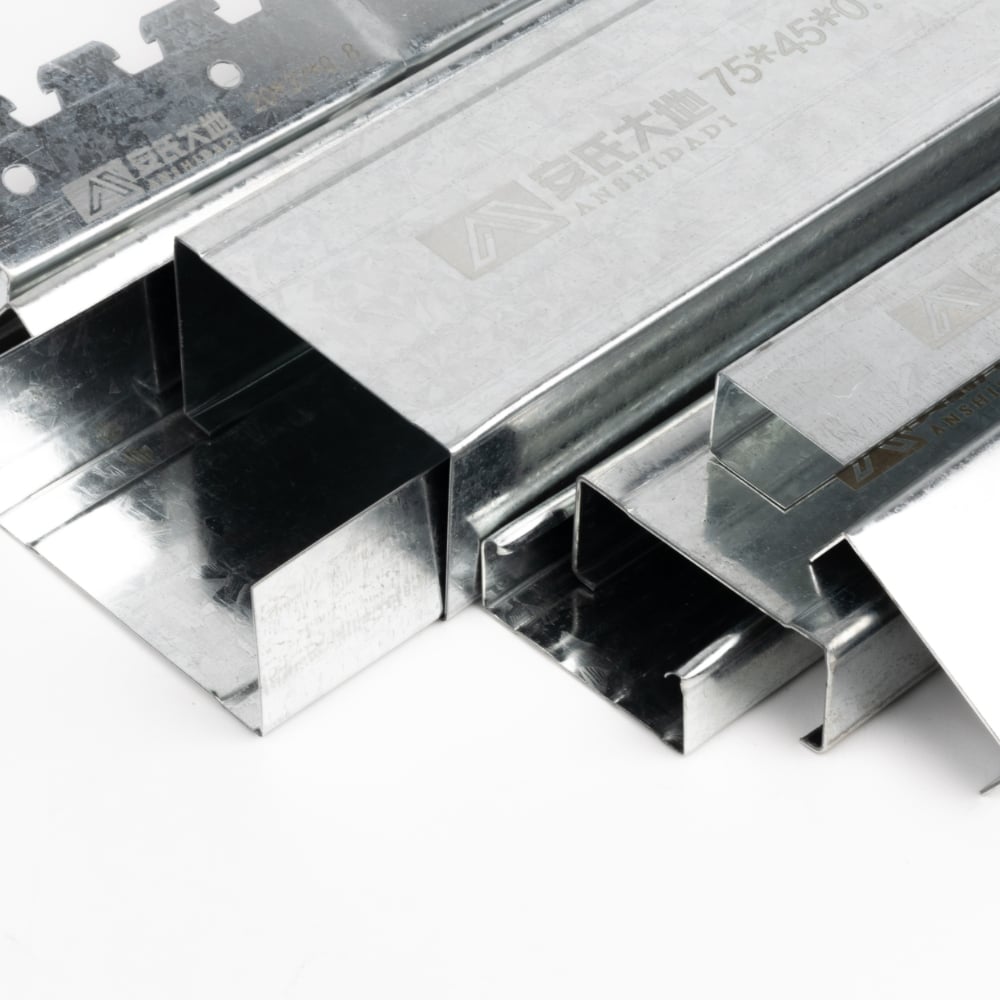

ANSHIDADI® Metal Studs are high-precision, cold-formed galvanized steel profiles engineered as the core vertical framing for drywall partition systems.
-
Product Series: QC50, QC75, QC100, and QC150
-
Thickness Range: 0.35mm to 1.2mm (Custom gauges available)
-
Standard Length: 3000mm (Custom lengths up to 12m)
-
Core Application: High-strength C-section framing for residential, commercial, and healthcare partition projects. Works seamlessly with ANSHIDADI top & bottom track systems.
Product Specification Sheet
- Overview
- Recommended Products
- True Thickness: Nominal thickness equals actual thickness, ensuring vertical load-bearing capacity and avoiding partition deformation.
- Sufficient Zinc Coating: Customizable zinc coating (Z30-Z275) provides excellent corrosion resistance, extending product lifespan.
- Full Customization: All dimensions can be tailored to project needs, reducing on-site cutting waste.
- System Compatibility: Perfectly matches ANSHIDADI Metal Tracks, forming a complete partition system and improving construction efficiency.
- Reliable Quality: Stable batch production meets national and industry standards, ensuring reliable structural support for construction projects.
Specifications
| Metal Stud | ||||
| A(mm) | B(mm) | Thickness(mm) | Length(mm) | |
 |
QC50 | 45 | 0.4/0.45/0.5/0.6 |
3000 or customize |
| 50 | 0.6/0.8 | |||
| QC75 | 30 | 0.35/0.4 | ||
| 35 | 0.4/0.45/0.5 | |||
| 40 | 0.6/0.8 | |||
| 45 | 0.45/0.5/0.6 | |||
| 50 | 0.6/0.7/0.8/1.0 | |||
|
QC92 (3-5/8'') |
32 (1-4'') | 0.48mm (18 mil) or 0.79mm (30 mil) or customize | ||
| 35 (1-3/8'') | 0.48mm (18 mil) or 0.79mm (30 mil) or customize | |||
| 41 (1-5/8'') | 0.48mm (18 mil) or 0.79mm (30 mil) or customize | |||
| 51 (2'') | 0.48mm (18 mil) or 0.79mm (30 mil) or customize | |||
| 64 (2-1/2'') | 0.48mm (18 mil) or 0.79mm (30 mil) or customize | |||
| 76 | 0.48mm (18 mil) or 0.79mm (30 mil) or customize | |||
| QC100 | 35 | 0.4/0.5 | ||
| 45 | 0.5/0.6/0.8 | |||
| 50 | 0.6/0.7/0.8/1.0 | |||
| QC150 | 50 | 0.6/0.7/0.8/1.0 | ||
| QC152 (6'') | 41 | customize | ||
Competitive Advantage
FAQ
Q: What product series and sizes are available for ANSHIDADI Metal Studs?
A: Our product range includes the QC50, QC75, QC92 (3-5/8"), QC100, QC150, and QC152 (6") series. We offer versatile flange/web dimensions (such as 32mm, 35mm, 40mm, 45mm, 50mm, and 64mm) to match various partition wall requirements.
Q: What are the thickness and length options for your galvanized steel studs?
A: Standard wall thickness ranges from 0.35mm to 1.2mm (including 18 mil and 30 mil options), with custom gauges available. The standard length is 3000mm, but custom lengths up to 12 meters can be tailored to eliminate on-site cutting waste.
Q: How do ANSHIDADI Metal Studs ensure corrosion resistance and structural durability?
A: Manufactured via high-precision cold-bending of high-quality steel, our studs feature customizable zinc coatings from Z30 to Z275 for superior rust protection. Additionally, guaranteed true thickness ensures full nominal load-bearing capacity without wall deformation.
Q: Can these metal studs be integrated into existing ceiling and partition wall systems?
A: Yes. ANSHIDADI Metal Studs feature a high-strength C-section design that seamlessly locks with ANSHIDADI top & bottom Metal Tracks, forming an efficient, stable framing framework for residential, commercial, and healthcare projects.
