Suspended Bar

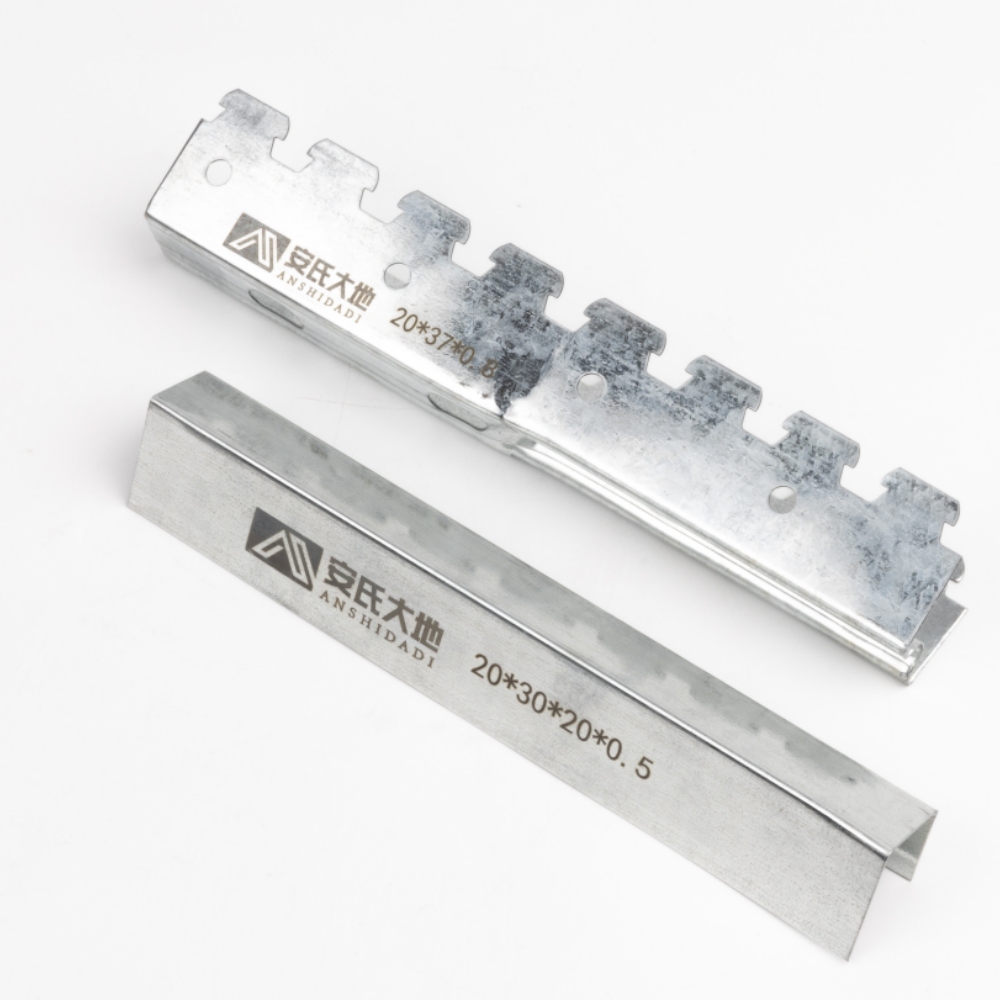

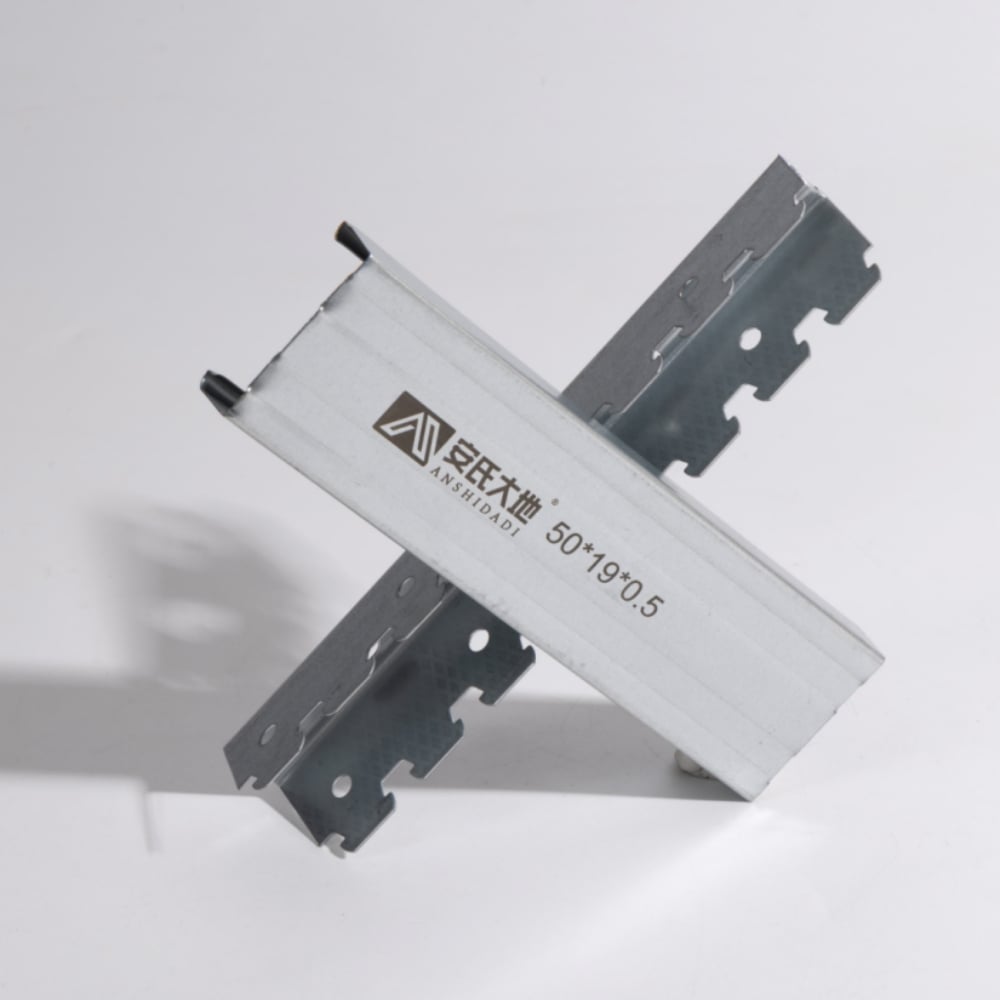

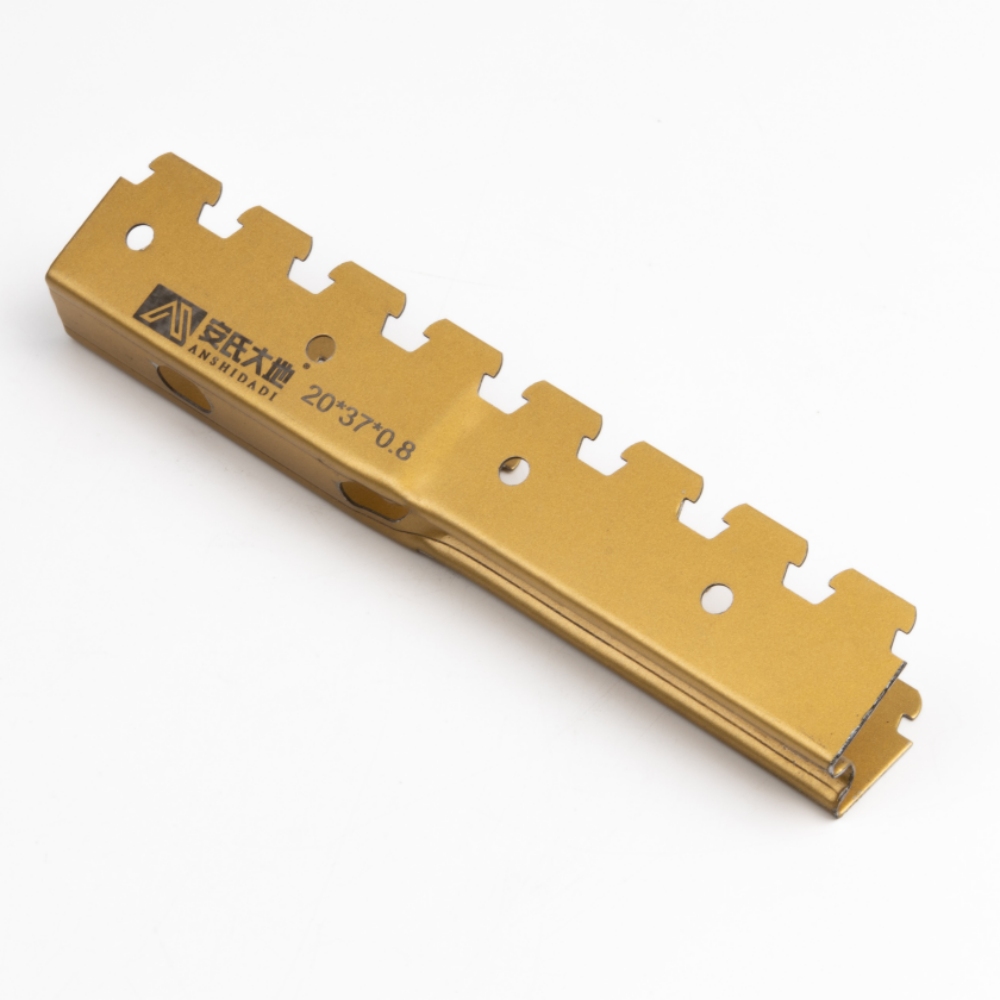

ANSHIDADI Suspended Bar is the core load-bearing connector in suspended ceiling systems, used to hang main runners, Omega channels, etc., to the building structure for load transfer and height adjustment. Made of high-quality galvanized steel strips via precision cold roll forming, our suspended bars are available in multiple size options. The standard length is 3000mm with full customization support, making it widely applicable to various building ceiling projects such as office buildings, shopping malls, and residences, providing reliable hanging support for the entire ceiling framework.
- Overview
- Recommended Products
- True Thickness: We adhere to "nominal thickness = actual thickness" with a consistent 0.8mm thickness across all sizes, ensuring sufficient tensile and shear strength to avoid breakage or deformation.
- Sufficient Zinc Coating: Customizable zinc coating (Z30-Z275) provides excellent corrosion resistance, extending product lifespan even in harsh environments.
- Full Customization: Besides standard 3000mm length, we support full customization of dimensions to reduce on-site cutting waste and meet project-specific needs.
- Reliable Quality & Efficient Installation: Stable batch production meets national and industry standards, and is fully compatible with ANSHIDADI's complete range of ceiling keel products, improving construction efficiency.
Specifications
Suspended Bar | ||||
|
A(mm) |
B(mm) |
Thickness(mm) |
Length(mm) |
 |
20 |
37 |
0.8 |
3000 or customize |
 |
20 |
20 |
|
|
25 |
20 |
|||
50 |
20 |
|||
