Wall Angle&Corner Bead

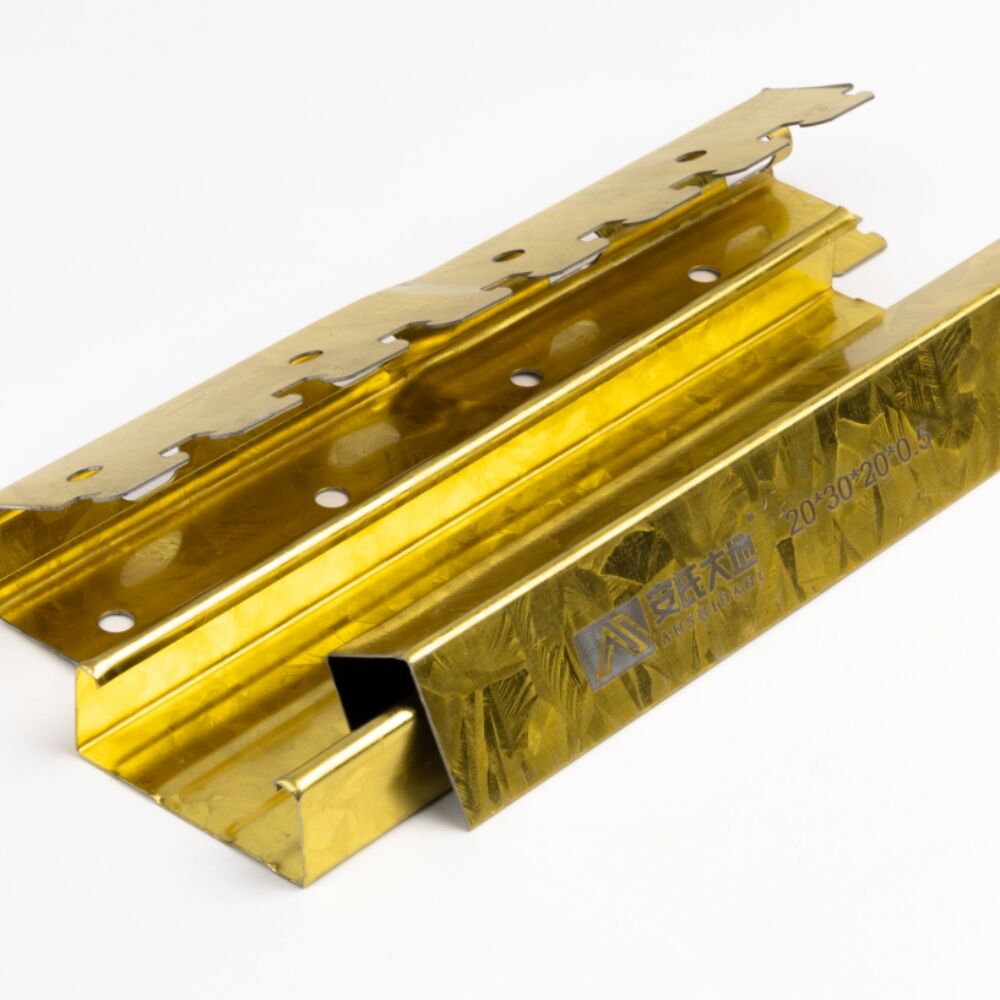

ANSHIDADI's light steel keel series is made of high-quality galvanized steel strip using a high-precision cold-bending process, covering four core scenarios: edge finishing, shaping, snap-fit, and corner protection.

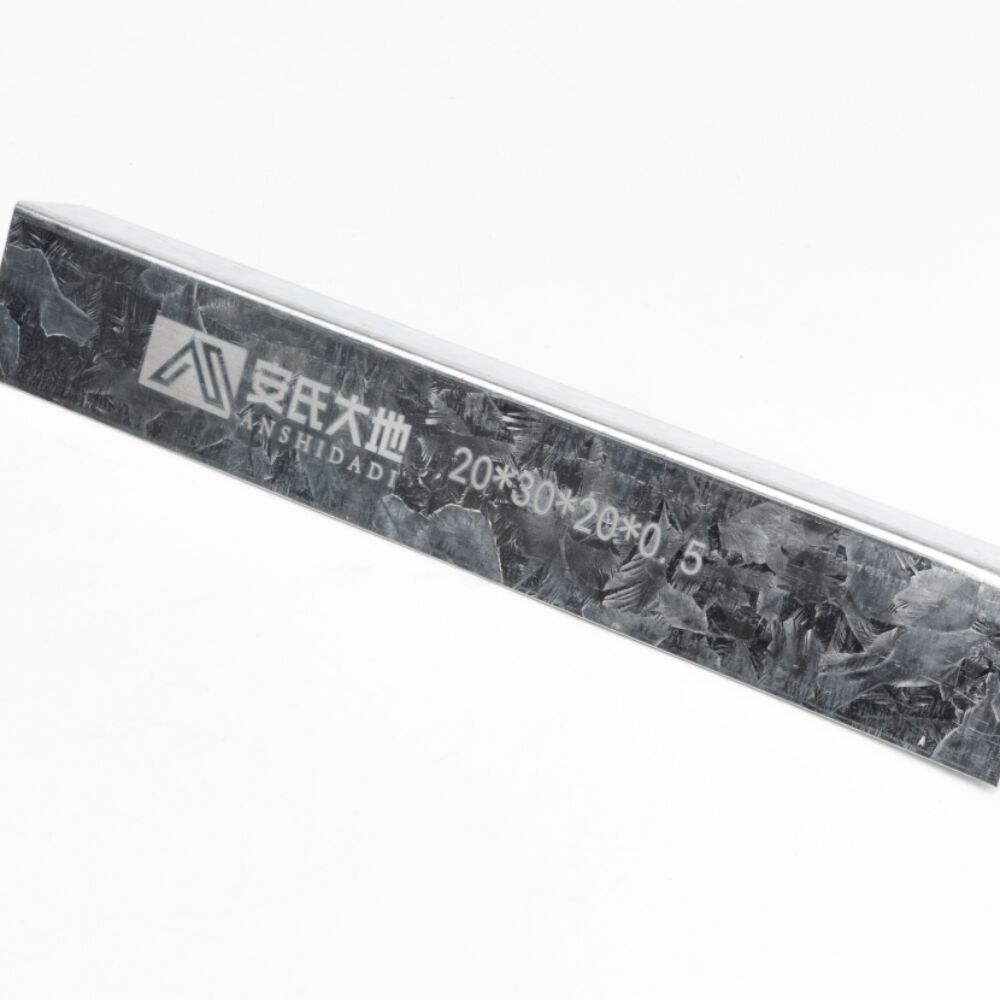

Wall Angle: Used for edge finishing and leveling of ceilings/partitions and walls, resulting in cleaner and straighter edges.
W Channel: Unique W-shaped cross-section provides stronger structural support and snap-fit positioning, suitable for complex shapes or high-load areas.
F Channel: Snap-fit design allows for quick connection with secondary keels, enabling nail-free and efficient installation and improving construction speed.
Corner Bead: Protects wall/column corners from impact damage, while also making corner lines straighter and more aesthetically pleasing.
The standard length of all products is 3000mm, but full-size customization is supported. Length, cross-sectional dimensions, and thickness can be adjusted according to project needs, making them widely applicable to ceiling and partition projects in various buildings such as office buildings, shopping malls, residences, and hospitals.
- Overview
- Recommended Products
- True Thickness: Nominal thickness equals actual thickness, ensuring structural stability.
- Sufficient Zinc Coating: Customizable Z30-Z275 coating for long-term corrosion resistance.
- Full Customization: All dimensions can be tailored to project needs, reducing waste.
- System Compatibility: Fully compatible with ANSHIDADI’s full range of keel products for efficient construction.
Specifications
| Wall Angle | ||||
| Thickness(mm) | Zinc plating | Length(mm) | ||
 |
25*25 | 0.3/0.4/0.5 | Z30-Z275 | 3000 or customize |
| 30*30 | ||||
| W Channel | ||||
| Thickness(mm) | Zinc plating | Length(mm) | ||
 |
25*25*40*25 | 0.6 | Z30-Z275 | 3000 or customize |
| F Channel | ||||
| Thickness(mm) | Zinc plating | Length(mm) | ||
 |
50*26*21 | 0.5 | Z30-Z275 | 3000 or customize |
| Corner Bead | ||||
| Thickness(mm) | Zinc plating | Length(mm) | ||
|
25*25 | 0.3/0.4/0.5 | Z30-Z275 | 3000 or customize |
| 30*30 | ||||
